Whirlpool Refrigerator Ice Maker Not Working – Fix It
1. Ice Maker Is Turned Off or Paused
Many Whirlpool models have a simple on/off switch or a bail arm that, when raised, halts ice production entirely. This is the easiest and most overlooked cause of a stopped ice maker.
- Open the freezer and locate the ice maker unit mounted on the side or back wall.
- Look for a rocker switch or toggle on the side of the ice maker and confirm it is in the ON position.

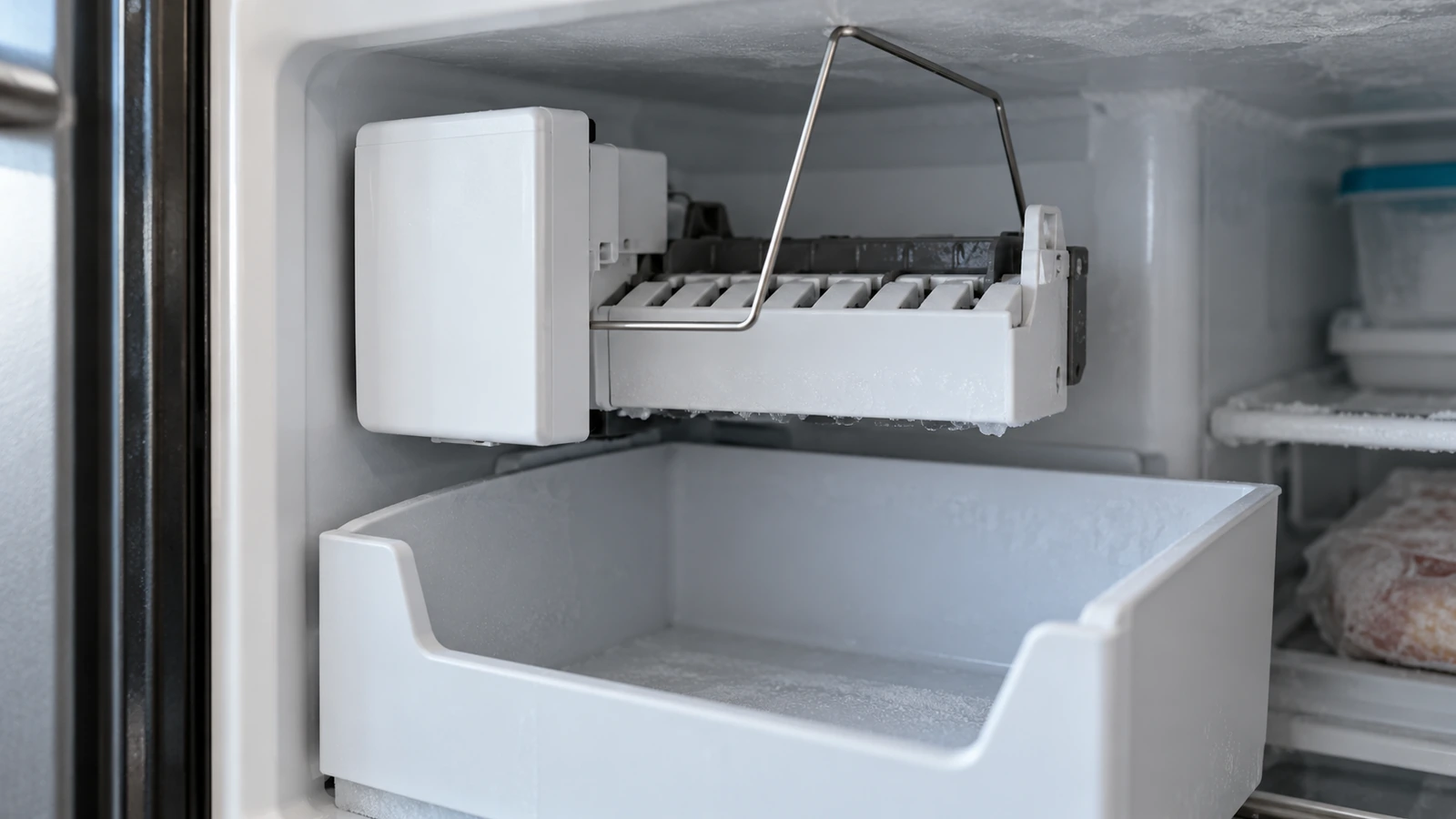

- If your model uses a wire bail arm (harvest arm), make sure it is in the down position — up means “off.”
- On models with a control panel, navigate to Ice Maker Settings and verify it is enabled.
- Wait 24 hours after turning it on for the first ice cycle to complete.
2. Clogged or Overdue Water Filter
A water filter that is clogged or more than six months old restricts water flow to the ice maker, producing small, hollow, or no ice cubes. Replacing it is inexpensive and often solves the problem immediately.
- Check the filter status light on the dispenser panel — a red or orange light indicates it needs replacement.
- Locate the filter (commonly inside the refrigerator compartment in the upper-right corner, or in the base grille).
- Twist or push-button the old filter out and install a compatible replacement filter.
- Run approximately 2–3 gallons of water through the dispenser to flush the new filter before expecting ice.
- Reset the filter indicator by pressing and holding the Filter Reset button for 3 seconds.
Check price
3. Frozen or Kinked Water Supply Line
The small fill tube that carries water into the ice maker mold can freeze solid, completely blocking water flow. A kinked plastic supply line behind the refrigerator produces the same result.
- Pull the refrigerator away from the wall and inspect the plastic water supply line for kinks or pinches; gently straighten any you find.
- Check the water shut-off valve (typically under the sink or behind the fridge) to confirm it is fully open.
- To check for a frozen fill tube, look for a small plastic tube entering the ice maker — use a hair dryer on low heat to gently thaw it, keeping the dryer moving to avoid damage.
- After thawing, run a test cycle and check for dripping that could re-freeze the tube, which may indicate a faulty water inlet valve (see below).
4. Faulty Water Inlet Valve
The water inlet valve is an electrically operated valve that opens to send water to the ice maker; if its solenoid fails or its internal screen clogs, no water reaches the ice mold. You’ll typically hear no “fill” sound during an ice cycle.
- Unplug the refrigerator before any work near the valve.
- Pull the fridge from the wall and locate the water inlet valve on the back lower panel — it has the water supply line attached to it.
- Inspect the small mesh screen inside the valve inlet for sediment buildup; clean carefully with a soft brush if needed.
- Use a multimeter set to Rx1 and test the solenoid terminals for continuity — a reading of roughly 200–500 ohms is normal; no continuity means the valve is faulty.
- Replace the valve if it fails the continuity test or shows visible cracking.
Check price
5. Defective Ice Maker Module or Assembly
The ice maker module (the motorized head unit) controls the harvest cycle — rotating the ejector blades, opening the water valve, and running the thermostat. When it fails internally, the entire cycle stops even if water and temperature are correct.
- Press and hold the Test button (a small recessed button on the ice maker face) for 3 seconds to initiate a manual harvest cycle; you should hear the motor run and water fill.
- If nothing happens during the test cycle and the switch and water supply are confirmed good, the module itself is likely defective.
- Unplug the refrigerator, remove the ice bin, and unscrew the ice maker assembly from its mounting plate.
- Disconnect the wiring harness and remove the old assembly.
- Install a compatible replacement ice maker assembly, reconnect the harness, and secure the mounting screws.
- Allow 24 hours for the first full batch of ice.
Check price
6. Freezer Temperature Too Warm
Ice production requires a freezer temperature of 0°F to 5°F (–18°C to –15°C); anything warmer slows or stops the ice maker’s harvest cycle. This can be caused by a failing evaporator fan, dirty condenser coils, or an incorrect temperature setting.
- Place a thermometer in the freezer for 30 minutes and record the temperature.
- If the temperature is above 10°F (–12°C), set the freezer control to a colder setting and retest after 24 hours.
- Unplug the fridge and vacuum dust and debris from the condenser coils (usually beneath the front grille or at the back) using a coil brush.
- Open the freezer and listen for the evaporator fan — it should run when the door is held closed (depress the door switch manually). If it is silent, the evaporator fan motor may need replacement.
- Check that the freezer door gasket seals completely around the perimeter; a worn gasket lets warm air in and raises the temperature.
Check price
For model-specific diagrams and official guidance, visit the Whirlpool Owner Center & Support page to look up your refrigerator’s manual.
Frequently asked questions
Why is my Whirlpool refrigerator ice maker not working after replacing the filter?
A new filter needs to be flushed before the ice maker resumes normal production. Dispense 2–3 gallons of water to purge air from the line, reset the filter indicator, and allow up to 24 hours for the first full ice cycle. If ice still doesn’t appear, check that the filter is fully seated and the correct model for your refrigerator.
How do I force a test cycle on a Whirlpool ice maker?
Press and hold the recessed Test button on the front face of the ice maker module for about 3 seconds until you hear the motor engage. The ice maker will rotate the ejector blades and call for a water fill. If the motor runs but no water enters, suspect the water inlet valve. If nothing happens at all, suspect the module itself.
How long should I wait for ice after fixing the problem?
After correcting the issue and restoring power, allow a full 24 hours before expecting a steady supply of ice. The freezer needs time to reach the correct temperature, and the ice maker typically takes 90 minutes to complete its first harvest cycle. Discard the first one or two batches after a repair involving the water system.
Can a power outage cause a Whirlpool ice maker to stop making ice?
Yes. A power outage or surge can reset the ice maker’s control board, sometimes leaving the ice maker in a paused or error state. Try unplugging the refrigerator for 30 seconds and plugging it back in to reset the electronics. Also confirm the ice maker switch is still in the ON position, as some models default to OFF after a reset.
